The data plane

This article explains how bytes move through PipelineZ: why DuckDB is the hub, the two tiers a connector’s data can travel on, why Arrow RecordBatch is the one canonical in-memory format, and the ownership rules that keep the zero-copy path safe.

DuckDB is the hub

Sources land data into a DuckDB staging database, SQL pipelines transform it inside DuckDB, and sinks drain results out. The engine never tries to be a buffer manager — DuckDB is the buffer manager:

• Staging is a disk-backed DuckDB database file (.pz/runs/<id>/staging.duckdb), not :memory:. DuckDB spills cold data, and its out-of-core operators (sort, hash join, window) handle datasets far beyond RAM, governed by its memory_limit.
• The .NET side holds only in-flight batches: bounded_channel_capacity × batch_bytes × concurrent_nodes — a small, predictable, configurable number.
• Sink egress streams: DuckDB result → Arrow batches → sink writer. Nothing is ever fully materialized in managed memory.

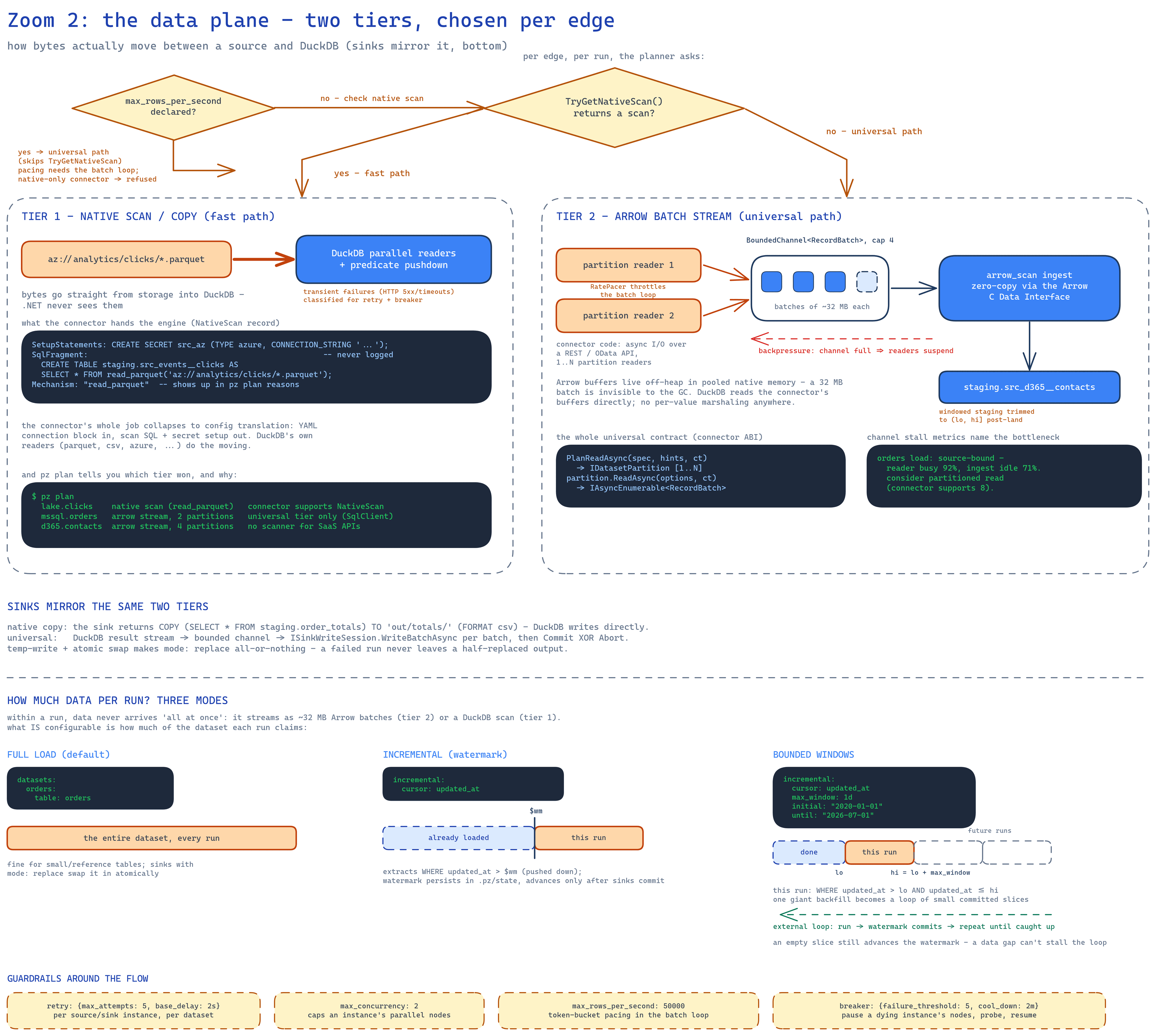

Tier 1: native scan and copy

DuckDB already ships world-class readers and writers — Parquet, CSV, JSON, httpfs/S3, postgres_scanner, sqlite_scanner, Iceberg, Delta. Streaming S3 Parquet bytes through .NET row by row when DuckDB can scan them directly, in parallel, with predicate pushdown, would throw that away.

On the native tier, the connector returns a DuckDB SQL fragment plus secret setup — for example read_parquet('s3://bucket/path/*.parquet') and a CREATE SECRET statement. Data never enters .NET memory; DuckDB pulls directly (or pushes, via COPY TO). The connector’s job reduces to configuration translation, and this is the fastest possible path.

The planner chooses the tier per edge, per run, prefers the native path, and logs which tier each edge used — pz plan shows the choice and the reason before anything runs.

Tier 2: the universal Arrow path

The universal tier is an async stream of Arrow RecordBatches, produced by a source connector or consumed by a sink connector. It works for any system — SaaS APIs, message queues drained as batches, proprietary databases — and is the path the engine’s internals optimize.

Arrow RecordBatch is the one canonical in-memory format, for four reasons:

1. Zero-copy into and out of DuckDB. DuckDB natively consumes Arrow streams via the C Data Interface (ArrowArrayStream) as a table scan and exports query results as Arrow. Ingest becomes CREATE TABLE staging.x AS SELECT * FROM arrow_scan(...) — DuckDB reads the connector’s buffers directly, in parallel, with no per-value marshaling.
2. Columnar batches amortize everything. Type dispatch happens once per column per batch instead of once per value; conversion vectorizes; layouts are SIMD-friendly.
3. Off-heap memory. Arrow buffers live in native memory. A 64 MB batch is invisible to the GC; the managed heap stays small and Gen2/LOH churn disappears.
4. It is the industry interchange standard. ADBC drivers, Arrow Flight, Parquet, and every modern engine speak it — so distributed execution and out-of-process connectors later become transport changes, not format changes.

The alternatives (DataTable, IDataRecord rows, the DuckDB Appender API, memory-mapped files) were each rejected as the canonical format — per-value copies, GC pressure, or no ecosystem leverage. Ingest is a genuine columnar transfer — one native call converts a whole batch across the Arrow C Data Interface, one more appends it, and no managed cost scales with row count — and egress rides DuckDB’s own Arrow export the same way.

Row-based edges are embraced, not denied. Most OLTP wire protocols are row-oriented anyway, so the Abstractions package ships batteries:

• ArrowBatchBuilder — pooled, allocation-free column builders; connector authors push rows and get batches at a target byte size.
• DataReaderSource — wraps any IDataReader/DbDataReader into an Arrow batch stream, so an ADO.NET-backed connector is ~50 lines. The row→column pivot happens once, at the edge, into pooled native buffers — the only place row-orientation touches the system.

Batch sizing is byte-targeted, not row-targeted (default ~32 MB, configurable; rows per batch also capped to keep DuckDB’s 2048-row vectors well-fed). Wide and narrow tables both land in the sweet spot: big enough to amortize per-batch overhead, small enough to keep pipeline latency, memory bounds, and progress reporting granular.

Batch ownership

[!IMPORTANT] A batch handed to WriteBatchAsync is engine-owned until the call returns. Buffers are pooled native memory, recycled the instant the engine disposes the batch — a connector that holds a reference past the call observes recycled memory. Ownership bugs are the worst bugs in this system, and Pz.Connectors.TestKit enforces the lifetime protocol against every connector.

Larger than memory

Because staging is disk-backed and the .NET side only ever holds in-flight batches, a dataset larger than RAM is the default case, not a special mode. DuckDB’s memory_limit governs spill; the engine’s own memory use stays bounded by the channel formula above. How the static budget is computed — and the measured baselines — are in Performance, which documents the 0.94–1.04 concurrent/sequential gate ratio behind the single-connection decision.
