Architecture overview

PipelineZ is a CLI-first, batch-oriented ETL framework for .NET that applies dbt’s philosophy to data movement, not analytics modeling. This article is the hub for the concept pages: it covers the design principles, how the pieces fit together, and the decisions that shaped them.

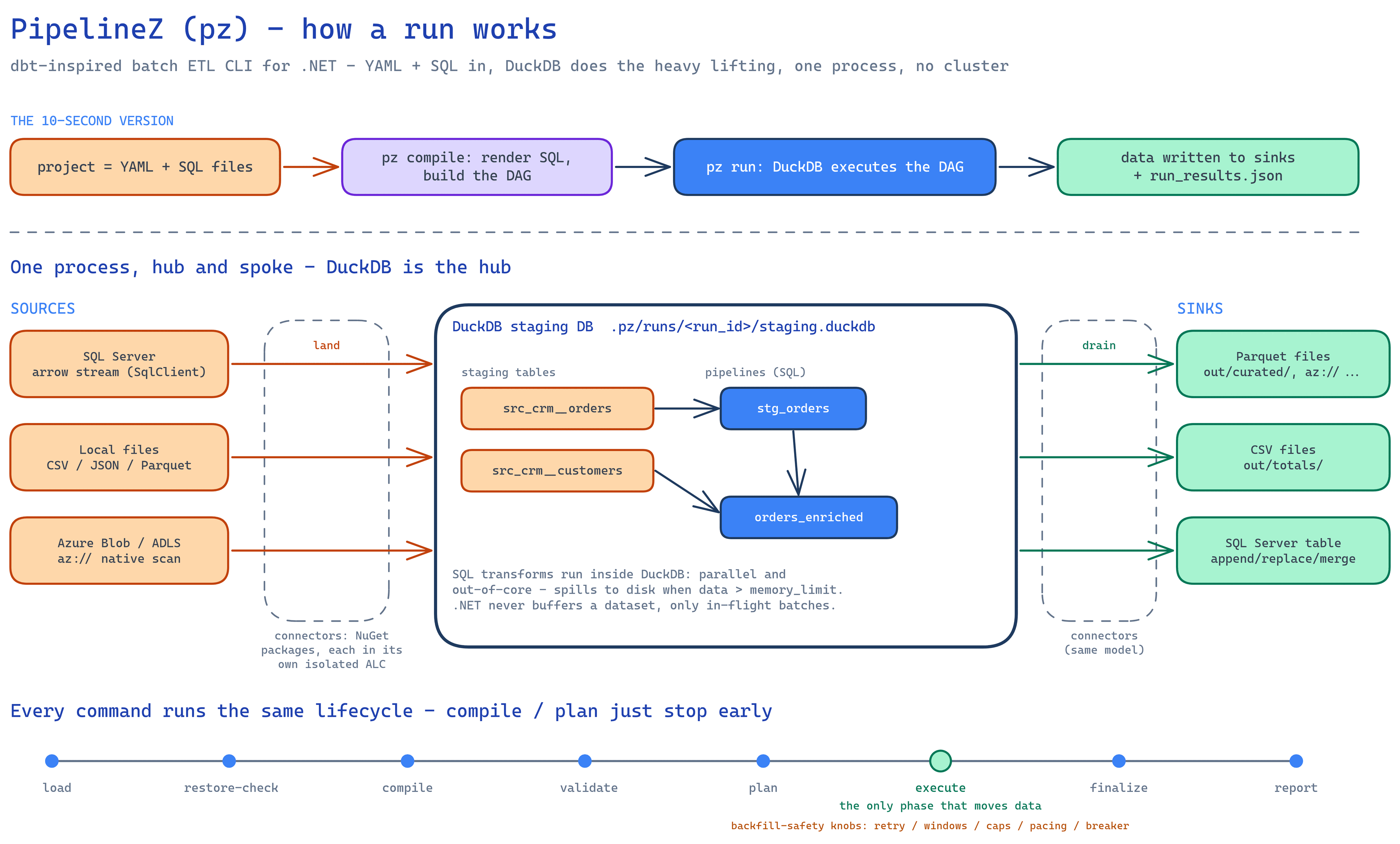

Overview: hub-and-spoke with DuckDB as the hub

Design principles

Section titled “Design principles”
  • Configuration as code — the entire pipeline definition lives in versionable text files.
  • SQL-first — transformations are DuckDB SQL files, not C# code.
  • Deterministic and reproducible — pinned connector versions, lock files, rendered artifacts, stable node identities. Same project + same inputs ⇒ same behavior.
  • The CLI is the product — connectors ship independently as NuGet packages; the CLI discovers, validates, and executes them through a stable ABI.
  • Performance is a feature — columnar, zero-copy where possible, larger-than-memory by default, allocation-conscious.
  • Transparent execution — you can always answer “what is it doing right now, and why is it slow?”

[!NOTE] The v1 non-goals are equally deliberate: no streaming, no orchestration/scheduling (compose with Airflow, Dagster, or cron), no distributed execution, no UI. The evolution path shows how those grow later without a redesign.

How the pieces fit

Section titled “How the pieces fit”

PipelineZ is a hub-and-spoke engine with DuckDB as the hub. Sources land data into a DuckDB staging database, SQL pipelines transform it inside DuckDB, and sinks drain results out. The CLI process hosts everything; connectors are loaded in-process from NuGet packages.

A universal-tier source that declares StablePartitionIds lands each partition into its own part table instead of one shared ingest stream; a short transaction then moves a completed partition into the main staging table together with a done row in an accounting ledger (pz_meta, inside the same staging database), so a later attempt — the same run’s retry loop or a later pz retry — skips whatever already landed instead of re-extracting it. A partition that also declares CheckpointableReads stages its progress through an additional segment table, so a resume token always covers exactly the rows already committed. Connectors that declare neither capability are unaffected: extraction stays the single shared-channel path it has always been.

A sink whose connector declares CheckpointableWrites gets the mirror-image treatment on the write side: the engine drains its input in a content-deterministic order by all and, after each batch, asks the write session how many rows it has durably confirmed, persisting that acknowledged count (fingerprinted against the drained relation’s content) to a pz_meta.sink_deliveries row at attempt teardown. A later attempt — same run or a later pz retry — resumes past the acknowledged prefix instead of re-delivering from zero, provided the relation’s content and the fingerprint still match; any mismatch scratches the row and falls back to a full re-drain. Sinks that don’t declare the capability are unaffected: the drain stays the plain unordered select * it has always been.

Layering is strictly downward:

Layer Responsibility Depends on
Pz.Cli argument parsing, console rendering, exit codes Core, Engine
Pz.Core project model, YAML/SQL parsing, template rendering, DAG compilation, validation Abstractions
Pz.Engine dispatch, node execution, retries, run artifacts Core, DuckDb, Abstractions
Pz.DuckDb thin interop layer over the DuckDB C API (Arrow ingest/export, query, EXPLAIN) —
Pz.PackageManagement NuGet resolution, lock file, connector materialization Abstractions
Pz.Connectors.Abstractions the connector ABI (the only assembly connector authors reference) Apache.Arrow only

The Abstractions assembly is the contract of the whole ecosystem. It depends on nothing but Apache.Arrow and the BCL, changes under a strict compatibility policy, and is deliberately small. See Connectors.

The two-tier data plane

Section titled “The two-tier data plane”

DuckDB already ships world-class readers and writers (Parquet, CSV, JSON, httpfs/S3, postgres_scanner, and more). Streaming S3 Parquet bytes through .NET row by row when DuckDB can scan them directly would waste that. So the data plane has two tiers, chosen per edge, per run, by the planner:

  1. Native scan/copy — the connector hands DuckDB a SQL fragment; data never enters .NET.
  2. Arrow batch stream — the universal path that works for any system.

The engine prefers the native path and logs which tier each edge used. The full story, including batch ownership rules, is in The data plane.

Decision log

Section titled “Decision log”

The load-bearing decisions, and why they went the way they did. Don’t undo these casually.

# Decision Chosen Over Because
1 Transformation hub DuckDB disk-backed staging DB in-memory DB, custom operators out-of-core for free; spill managed by the best buffer manager available
2 Canonical data format Arrow RecordBatch IDataReader/DataTable/rows zero-copy DuckDB boundary, off-heap pooled buffers (no LOH churn), industry interchange
3 Data plane two-tier: native scan/copy + arrow stream one universal path DuckDB’s own readers beat any generic path; universality preserved
4 Plugin hosting in-proc, ALC per package out-of-proc, compile-time zero-copy + dependency isolation; ABI shaped so out-of-proc is additive later
5 Package restore in-proc NuGet client + lock file shell out to dotnet restore no SDK requirement, better errors, deterministic
6 Templating sandboxed Scriban, whitelisted fns full Jinja parity, hand-rolled dbt ergonomics without dbt’s non-determinism footguns
7 DAG inference from ref()/source() at render time SQL parsing simple, exact, dbt-proven; DuckDB still validates the SQL — one scoped exception covers incremental config (never edges), inferred from DuckDB-parsed watermark() comparisons whose recognized shape is total-or-error
8 Batch sizing byte-targeted (~32 MB) adaptive fixed row counts wide/narrow tables both hit the amortization sweet spot
9 Concurrency channels + async + DAG limit; DuckDB self-parallel custom thread pools backpressure and bottleneck metrics for free; no lock-based data path
10 Observability typed events → console/NDJSON/OTel renderers printf logging one truth, many views; OTel is wiring not surgery
11 Connector trust JSON-Schema self-description + TestKit central connector registry CLI validates configs for connectors it has never seen; quality enforced by contract tests
12 Host distribution framework-dependent dotnet tool, R2R Native AOT plugins need the JIT; startup mitigated by ReadyToRun
13 Retry + delivery guarantees staged-data reuse, carried-forward sinks, provenance-gated advancement re-extract on retry; sink-side slice ledger the flaky source is never re-contacted for data it already delivered; the watermark only advances for slices every sink actually received; the ledger stays an additive future (delivery guarantees)
14 Flow addressing & multi-flow invocation independent flow = connected DAG component, computed on demand; pz run <name> = both-direction +name+ closure; PZ0215 gates bare run on 2+ flows (--all is the explicit whole-project spelling); names/--select/--all mutually exclusive (PZ0216) flow YAML or folder conventions; silently running everything by default zero new config; selection rides the existing --select subset path (watermarks, retry, plan.json full-coverage all unchanged); running everything should be said out loud once a project holds more than one flow
15 Azure Blob/ADLS connector first-party builtin azureblob connector (native azure-extension scan/copy + full-fidelity universal tier over the Azure Storage SDK), retiring the earlier “azure:// deferred” position leaving azure:// permanently backlogged behind the S3-only objectstore sink Azure is one of the two Microsoft-centric connectors the SQL Server design named (2026-07-12 design); two ratified judgment calls ship with it — no PredicatePushdown capability on the universal tier (an in-process parquet/csv reader can’t honestly push a WHERE into a byte stream; that stays a native-tier property) and abfss:// (ADLS Gen2) ships accepted/validated/unit-tested only, with the Azurite e2e round-trip gap documented (Azurite’s Gen2 hierarchical-namespace emulation isn’t faithful enough to test against)
16 Date-partitioned paths calendar tokens ({yyyy}/{MM}/{dd}/{HH}/{mm}) in a shared, connector-agnostic PathTemplate (ABI helper); read pruning requires a bounded incremental window (PZ0217/PZ0218/PZ0221), write fan-out via partition_by is universal-tier only and per-partition atomic (PZ0219) run-date/logical-date token expansion; numeric/arbitrary-key partitioning; all-or-nothing promote across partitions watermark-window-driven pruning composes with existing bounded windows instead of a new run-date concept; per-partition atomic write matches how object-store partitioned writers actually behave and avoids false atomicity across N independent blob promotes (2026-07-13 design)
17 JSON (NDJSON) as a third format shared NdjsonCodec (ABI, Arrow ↔ NDJSON) + native read_json/COPY … (FORMAT json), wired in the azureblob connector; requires a declared columns: contract on the source side, same as csv (no inference) per-connector JSON codecs; schema-inferring JSON reads one shared codec other connectors can adopt instead of each rolling its own; consistent with csv’s contract-required precedent (2026-07-13 design) — known caveat: non-finite doubles (NaN/±Infinity) round-trip as literal tokens on the native tier but as JSON null on the universal tier (System.Text.Json has no bare-NaN literal), so a native-written file with non-finite doubles isn’t readable by the universal tier — see connectors.md
18 Watermark-scale hardening (many small files) additive IStreamingSource/ConnectorCapabilities.StreamingPartitions drain (partitions yielded lazily under the existing bounded-channel gate, memory bounded to one listing page) + opt-in files_per_partition coalescing on the universal tier (PZ0222 on non-positive/non-integer); native tier already avoids per-file objects and stays the preferred path for scale a hard file-count ceiling with silent truncation; always one partition per file bounds memory over millions of files without a new run-date concept or planner change; coalescing amortizes per-file dispatch/stream-open overhead on the universal fallback only, where native isn’t available (2026-07-13 design)
19 Pipeline SQL expresses the whole load inline INSERT INTO {{ sink(...) }} (scalar or array, for fan-out) is the sole load mechanism; sink outputs are a pure connection/dataset registry entry, never a producer binding the YAML input: field on sink outputs (removed; a leftover input: is PZ0112) one artifact — the pipeline SQL — names extract, transform, and load; keeps DAG-edge inference uniform (decision #7) across source()/ref()/sink(); declared-but-unbound output is now a non-blocking PZ0207 warning, not a compile error, so a work-in-progress project still runs (2026-07-14 design)
20 Azure reads are native-only reads ride the DuckDB azure extension exclusively, with no universal fallback; INativeOnlySource (mirroring INativeOnlySink) lets the planner refuse engine.force_universal/files_per_partition on it at plan time (PZ0312) the universal read half of decision 15’s dual-tier connector (AzureCsvReader, the batch half of AzureParquetReader, AzureBlobPartition/AzureCoalescedPartition, streaming enumeration) — it existed “so that max_rows_per_second pacing and engine.force_universal work against Azure storage” (2026-07-12 design §Tier 2) a dual-maintained .NET reader per format for a knob built to protect struggling databases, not blob storage — no real workload needs a forced-universal blob read; the universal tier stays write-only (partition_by fan-out), and GetSchemaAsync’s SDK schema peek is untouched (2026-07-15 design)
21 Remove max_rows_per_second throttling is duty-cycle (max_window + run spacing + max_concurrency) plus DB-side resource limits; pacedMs removed from the events wire (sanctioned pre-release break) keep-for-databases-only; chunked native pacing; pacedMs: 0 forever pacing only ran on the universal tier, so every connector had to implement-or-reject it (the 2026-07-15 azure cycle deleted a ~600-line read stack that existed only for it); DB pacing was never integration-tested (2026-07-16 design)
22 Operation gate + request pacing (2026-07-20) engine-owned IOperationGate/IOperationGateAware boundary a connector wraps each remote operation in — retry delays, jitter, pacing, and breaker state stay engine-side; a per-instance shared token bucket (rate_limit:) + proactive budget hints (ReportBudget) pace the operation, not the row; adopted by http (reads) and azureblob’s universal writes (open_write/commit_copy/delete_temp) only connector-side retry loops per operation; a second, dataset-level rate limit; retrofitting s3 generalizes resilience to the operation boundary without breaking single-retry-owner or breaker semantics — the breaker still sees only the node’s final outcome, and op exhaustion always consumes exactly one node attempt (bounded at MaxAttempts op × MaxAttempts node); a mid-crawl 429 now retries just the failed request instead of the whole node; s3 has no universal write path (native-only COPY over httpfs) and its HTTP traffic happens inside DuckDB, out of .NET’s reach by design — nothing to retrofit (2026-07-20 design)
23 Partition-scoped retry + intra-partition checkpoints completed partitions’ rows persist across attempts, accounted in a pz_meta ledger inside staging.duckdb updated atomically with the data; checkpoint tokens commit in the same transaction as the rows they cover a dedicated partition-level retry loop no new retry loop — partition failures aggregate into one transient node failure driving the existing attempt loop, and pz retry partial-reuses a failed SourceLoad’s completed partitions through the same ATTACH machinery (2026-07-21 design)
24 Sink semantics declared AbortSemantics surfaced on failure, compile/plan-time write-mode refusal (PZ0228/PZ0324), engine-owned delivery-checkpoint ledger in pz_meta with content-fingerprint guards; HTTP sink v1 is the driving consumer letting a failed write imply cleanup it never did; letting a connector’s mode declaration go unenforced until it throws at run time; a sink-side idempotency ledger for every connector an honest abort story needs the connector’s own declaration, not an assumption; mode refusal at compile/plan time turns a run-time surprise into a validation error; the delivery ledger is engine-owned so any CheckpointableWrites connector gets resumable delivery for free, while connector-side exactly-once append stays deferred (2026-07-21 design)
25 Unified sync/write declaration surface two consolidated blocks — dataset sync: { mode: auto|incremental|cdc } (read) and output write: { strategy, keys, duplicates, on_delete } (write) — plus a compile/plan-time (read shape × write strategy) pairing matrix (PZ0335 new-refuses incremental×replace; PZ0214’s consent becomes the matrix’s consent cells); the pre-cycle per-dataset ordered-cursor block, the HTTP opaque-token marker block, and the loose top-level strategy/keys/consent output keys are all retired as compile errors (PZ0332/PZ0333) naming the exact rewrite; the connector ABI (OutputSpec, DatasetSpec) is untouched per-cycle bolt-on keywords (a fourth read shape would have been a fourth top-level block); flow-level read/write intent instead of per-dataset/per-output declarations one vocabulary each for “how is this read” and “how is this written”, with pair legality stated once instead of scattered per-connector checks; CDC slots in as a matrix row/mode, never new keywords (2026-07-24 design)
26 Batch CDC for Postgres and SQL Server sync: {mode: cdc} rides the existing run-to-completion engine — a bounded poll per pz run (pgoutput logical replication / native cdc change tables), landed raw into <staging>__changes, collapsed to last-event-per-key upserts (ConnectorCapabilities.ChangeCapture, IChangeCapturePartition) plus a net-deletes side table drained through on_delete: delete|soft|ignore (ConnectorCapabilities.ApplyDeletes, IDeleteApplyingWriteSession); the opaque log position (LSN) reuses the sync-state seam (commit-gated advancement, replay-from-last-committed-token) rather than a new state kind; pz-owned slot/capture-instance lifecycle inspectable/removable via pz cdc status/drop (IChangeCaptureAdmin) a streaming/daemon consumer; a parallel CDC-specific state store; auto-enabling server-side prerequisites (wal_level, publications, sp_cdc_enable_*) no cursor column required and deletes become representable, without a second execution model — the engine, retry-reuse, and delivery-guarantee machinery (decisions 13/25) apply unchanged; server-side setup stays the DBA’s call, pz only validates and instructs (2026-07-24 design)

| 27 | External-connector installability (2026-08-23) | pz.lock.json schema v2 records each asset as (file name, archive path), and PackageMaterializer extracts by that recorded path; native assets select through a portable RID graph (linux-musl-x64 reaches linux-x64) taking only the most specific match; a transitive package’s native/ flattens onto the connector’s probe path the way lib/ already did; a duplicate file name across two packages is PZ0325 | re-finding an asset in the archive by file name under a lib//runtimes/ prefix; vendoring the SDK’s PortableRuntimeIdentifierGraph.json; upgrading a v1 lock in place | a lock holding only file names discards the target framework and RID the resolver already chose, so a multi-targeted, multi-RID package silently installs whichever build comes first in the zip — a net472 assembly on a .NET 10 host, an arm64 native library on x86-64; both are files of the right name, so nothing looks wrong until a MissingMethodException or a wrong-architecture dlopen. The RID graph is derived structurally from one OS-ancestry table rather than vendored, which would need a third-party notices file; a v1 lock names no archive paths to upgrade from, so it is diagnosed (PZ0321) and regenerated (2026-08-23) | | 28 | partition_by names columns; path says who lays them out (2026-08-23) | one meaning for the option — the columns an output is partitioned by, a name or a list — with calendar tokens in path: selecting pz-rendered layout (PathTemplating) and their absence selecting destination-owned layout (ColumnPartitionedWrites, new); PartitionColumns is the single parser, DagCompiler keeps only the connector-agnostic declaration checks (PZ0219), and the capability refusal is the planner’s PZ0314 | overloading partition_by to mean two different things per connector; letting each connector invent its own spelling for column partitioning; refusing partition_by without date tokens | a table format (Delta, Iceberg, Hive-layout parquet) partitions by column value with no path to route into, so the old “tokens required” rule made it undeclarable and any table written through pz unpartitioned; splitting on path: keeps one vocabulary while letting the two layouts stay distinct capabilities, and the compiler/planner split matches the existing source-side precedent (PZ0313) — only the planner holds the connector instance (2026-08-23) | | 29 | Write attempt identity (2026-08-23) | OutputSpec.Attempt (Node, Run, Ordinal) stamped on the universal write path, additive on the ABI, so a sink whose destination holds a durable marker can skip work a previous attempt committed | a cross-run dedupe primitive; a connector-side slice ledger for every sink | closes the duplicate window append actually suffers — a commit that reached the destination and then failed to be reported back — within one run, which is where it happens; cross-run identity would need an origin run id threaded through run_results.json and every artifact backend, and a primitive silently unreliable in one backend is worse than one whose limit is stated on the type (2026-08-23) |

Evolution path

Section titled “Evolution path”

The architecture grows toward these without a rewrite, because the contracts — Arrow batches, JSON configs, serializable plans, typed events — are transport- and location-neutral. Growth changes implementations, never interfaces.

  • Incremental processing — shipped (v0.2 unbounded watermarks, v0.3 bounded backfill windows): content-addressed node IDs, the .pz/state watermark store, DatasetSpec.WatermarkCursor/WatermarkUpperBound, and the merge sink mode. What was speculative at v0.1 needed no architectural change — only planner/executor logic and an additive capability flag (BoundedWindow).
  • CDC — a source capability emitting change batches with op-type columns; DuckDB merge pipelines consume them. The batch-stream contract already fits.
  • Distributed execution — plan.json is a serializable DAG of nodes with content hashes; nodes become dispatchable units; Arrow Flight replaces in-proc channels between workers. The format never changes, only the transport.
  • Orchestration integration — manifest.json + selectors map directly onto Airflow/Dagster task generation, exactly how dbt integrations work today; exit codes and run_results.json are the contract.
  • Lineage — the manifest already is table-level lineage; column-level comes from DuckDB’s SQL parser (json_serialize_sql) over already-rendered SQL. An OpenLineage emitter is one more event renderer.
  • Out-of-proc / polyglot connectors — an adapter connector that speaks Arrow IPC over stdio to a child process, implementing the existing ABI (decision #4 was made to keep this additive).
  • Cloud-native — the CLI is already a self-contained batch job: container image + project mount + env secrets. Metrics and traces already speak OTel.
